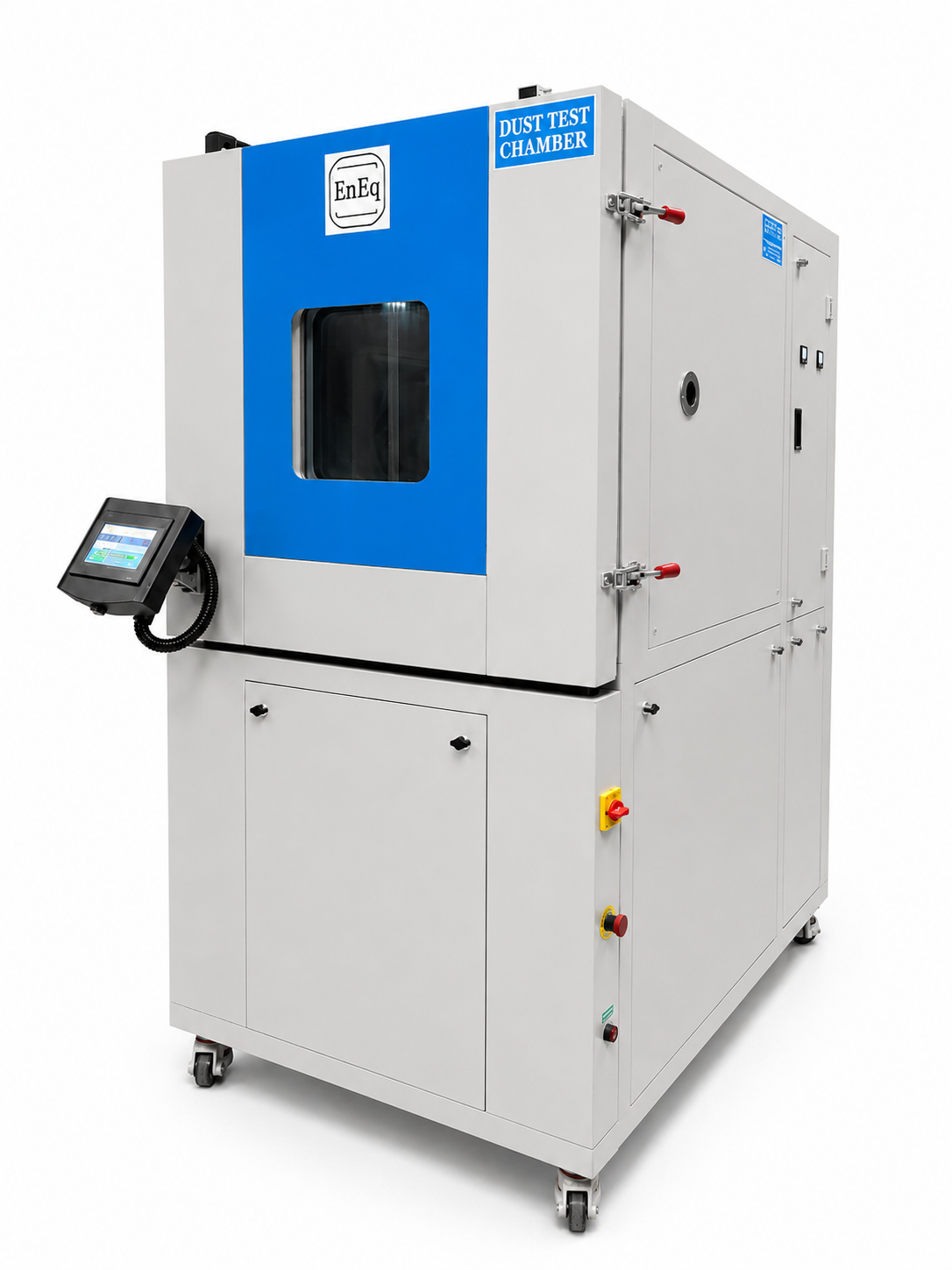

M/S Environment Equipments make Dust and Sand Test Chamber provides an environment to test the exposure of automotive and electronic components to concentrated levels of dust. These chambers are utilized in several industries and applications such as for Automotive, Electricals and Electronics’ Components Military & Defense, Computer Systems, Optics and Displays, Materiel, Coatings, Solar Energy, etc.
EnEq is capable to supply such kinds of equipment with complete programmable controlling instrumentation to ensure the perfect test environment. These are also fitted with full-measurement systems to measure the concentration of dust, fallout rate of dust, and as well as the air-flow rate.
| Test Environment Simulation | Dust and Sand test Chamber. |
| Standard Performance | Confirm JSS55555, IS9000 , MIL810G, IS 12063 / IEC 60529 (IP) etc. |
| Construction | Interior made of Satin finish Stainless Steel grade 304/ Exterior powder coated CRC sheet |
| Temperature Range | Temperature Range 5°C above, Ambient to +70°C ±2°C Tolerance |
| Working space | 1000 x 1000 x 1000 L or Customize size are available. |
| Humidity Range | < 50 % RH |
| Temperature Monitoring & Control | Temperature sensor feed input to PID Controller to control SSR fired Heaters. |
| Dust Measurement | Dust measuring device conforming to comply JSS 55555 to give 25 grams ±5 grams in 5 minutes and as per other standards |
| Thermal Insulation | 75 mm thick Non-flammable rock-wool with / PUF |
| Viewing Window | 400 x400 mm Two/Three panes toughened glass filled with dry air and strip heaters to Prevent condensed water |
| Port Hole | 125 and 50mm Port Hole for outlet of operational wire/ cables etc. |
| Performance | All critical components of CE marked with suitable rating All branded components of European Community and All branded electrical components of international level |
| Electrical power requirement | 415V AC (± 10%), 3 Phases, 50 Hz |
