• Wide Dynamic Range
• Force rating from 10Kgf to 7000Kgf
• High performance armature assembly
• Power Efficiency is greater than 90%
• 90 degree Rotation of the shaker for easy integration with slip table
• Power Module designed for easy and quick operation
• Required Safety interlocks mounted for safe operation
• Auto Centering of Armature
• Suitable Connectivity with all worldwide controllers Option for Chamber integration

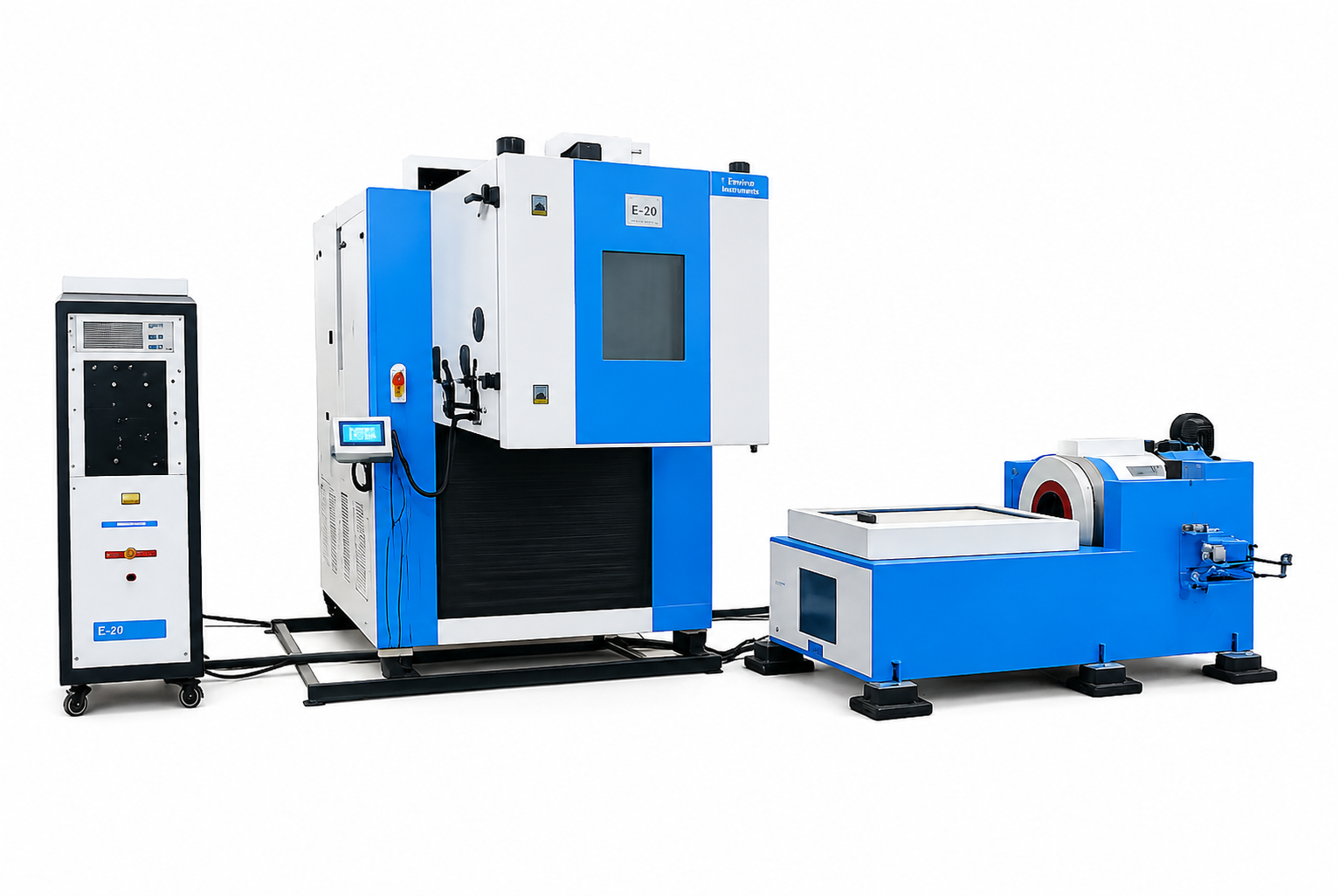

Electrodynamics Vibration Shaker System are vibration generating equipment, having wide frequency range providing a worthwhile testing environment for Sinusoidal, Shock and Random vibration analysis in Automotive parts and system qualification testing, Avionics and military hardware testing, satellite component testing, Product development & reliability, Telecom, Automobiles Industries, Stress screening, R&D laboratories, Testing Agencies , Defence and Ordinance factories etc as per relevant ISO, IEC,IS,BIS,ASTMB,ISS,JSS55555,BIN,JSS,JIS,MIL-810G,JAS,EN and other National & international Standards.

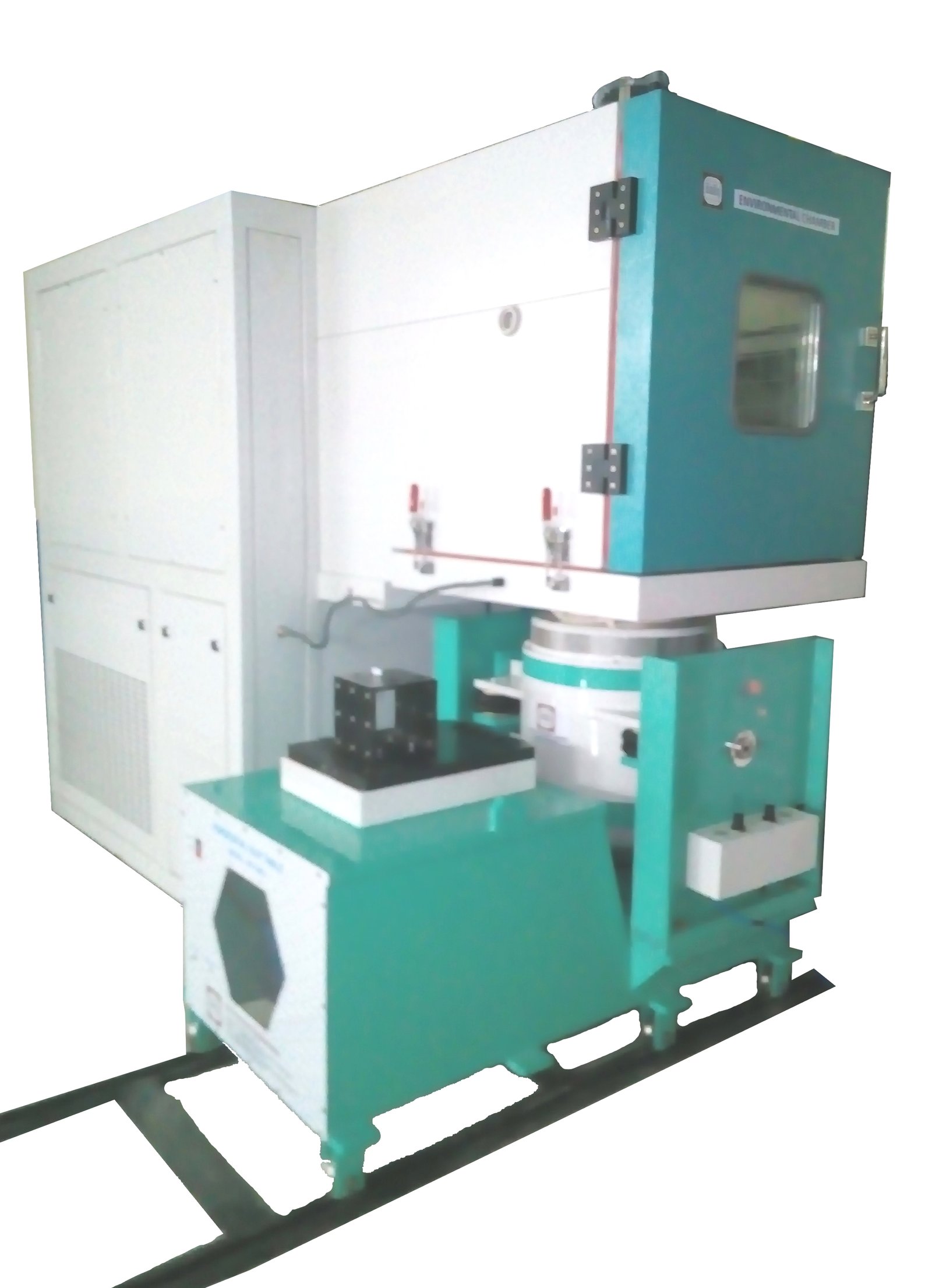

M/s Environment Equipments offers fully integrated slip table assemblies for attachment with Electrodynamics vibration Shaker. The system is used for three axis sequential testing (x, y, z axis) or used when it is necessary to maintain product positioning with respect to gravity. The system base is comprised of thick mild steel plates with multiple supporting members providing a rigid and sturdy platform for most test items.

A special trunnion gear assembly allows the shaker to be easily rotated between vertical and horizontal orientation.

Specifications are correct at the time of publication. In reference to with our commitment to continuous product improvement, the information herewith is subject to change. ENEQ reserves the rights to amend specifications without prior notice

Note:-

•  Shaker can be design as per the Customer testing requirement.
•  For higher Random force re-rated amplifier and shaker are also offered.
