- Wide Dynamic Range
- Force rating from 10Kgf to 7000Kgf
- High performance armature assembly
- Power Efficiency is greater than 90%
- 90 degree Rotation of the shaker for easy integration with slip table
- Power Module designed for easy and quick operation
- Required Safety interlocks mounted for safe operation
- Auto Centering of Armature
- Suitable Connectivity with all worldwide controllers Option for Chamber integration
Electrodynamics Vibration Shaker System are vibration generating equipment, having wide frequency range providing a worthwhile testing environment for Sinusoidal, Shock and Random vibration analysis in Automotive parts and system qualification testing, Avionics and military hardware testing, satellite component testing, Product development & reliability, Telecom, Automobiles Industries, Stress screening, R&D laboratories, Testing Agencies , Defence and Ordinance factories etc as per relevant ISO, IEC,IS,BIS,ASTMB,ISS,JSS55555,BIN,JSS,JIS,MIL-810G,JAS,EN and other National & international Standards.

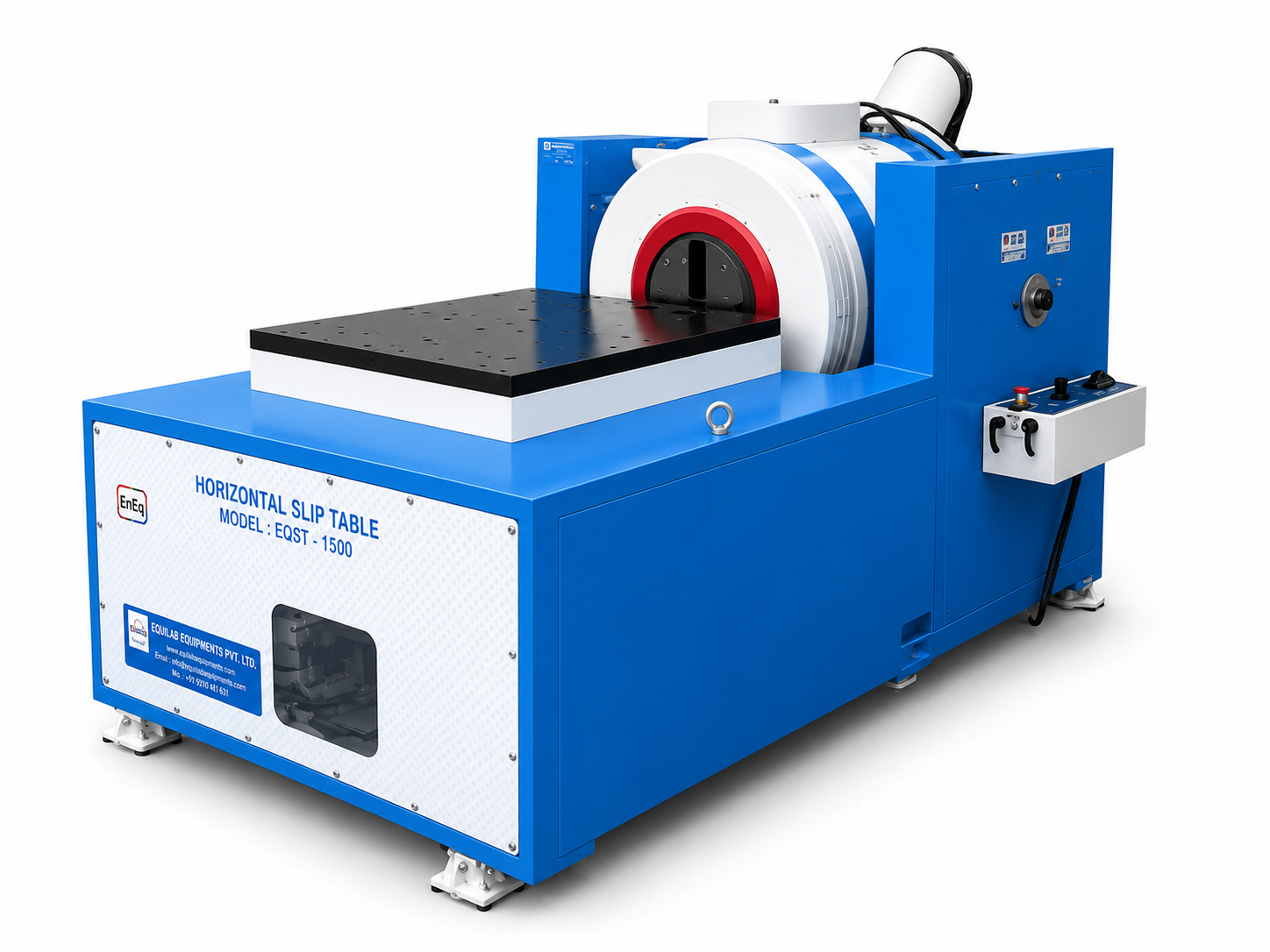

M/s Environment Equipments offers fully integrated slip table assemblies for attachment with Electrodynamics vibration Shaker. The system is used for three axis sequential testing (x, y, z axis) or used when it is necessary to maintain product positioning with respect to gravity. The system base is comprised of thick mild steel plates with multiple supporting members providing a rigid and sturdy platform for most test items.
A special trunnion gear assembly allows the shaker to be easily rotated between vertical and horizontal orientation.
Specifications are correct at the time of publication. In reference to with our commitment to continuous product improvement, the information herewith is subject to change. ENEQ reserves the rights to amend specifications without prior notice
Note:-
- Shaker can be design as per the Customer testing requirement.
- For higher Random force re-rated amplifier and shaker are also offered.
| System Model |
E600/P63 |
E500/P55 |
E400/P48 |
E350/P42 |
E300/P35 |
| SYSTEM PERFOMANCE PARAMETERS |
| Sine Force (peak) |
6000Kgf |
5000Kgf |
4000Kgf |
3500Kgf |
3000Kgf |
| 60.0kn |
50.0kn |
40.0kn |
35.0kn |
30.0kn |
| 13220lbf |
11000lbf |
8800lbf |
7700lbf |
6600lbf |
| Random Force(RMS Kgf) |
6000 |
5000 |
4000 |
3500 |
3000 |
| Random Force (KN) |
60.0 |
50.0 |
40.0 |
35.0 |
30.0 |
| Shock Force (Kgf) |
12000 |
10000 |
8000 |
7000 |
6000 |
| Shock Force (KN) |
120 |
100 |
80 |
70 |
60 |
| Max. Acceleration(g) |
85 |
90 |
85 |
100 |
85 |
| Max. Velocity (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| Max. DisP (mm,p-p) |
51/63 |
51/63 |
51/63 |
51/63 |
51/63 |
| Frequency Range(hz) |
DC to 2000 |
DC to 2300 |
DC to 2400 |
DC to 2800 |
DC to 2800 |
| Armature Resonance(±5%) |
2000 Hz |
2100 Hz |
2100 Hz |
2300 Hz |
2300 Hz |
| SHAKER PARAMETER |
| Model |
EEV600 |
EEV500 |
EEV400 |
EEV350 |
EEV300 |
| Mass of Armature |
70 Kg |
55 Kg |
47 Kg |
35 Kg |
35 Kg |
| Armature Diameter (in mm) |
440 mm |
440 mm |
440 mm |
360 mm |
360 mm |
| Payload Capacity (Kg) |
600Kg |
550 kg |
500 kg |
375 kg |
375 kg |
| Insert Pttern |
Center-1
200 PCD-8
400 PCD-8 |
Center-1
200 PCD-8
400 PCD-8 |
Center-1
200 PCD-8
400 PCD-8 |
Center-1
200 PCD-8
400 PCD-8 |
Center-1
200 PCD-8
400 PCD-8 |
| System power Consumption |
90 |
80 |
64 |
55 |
48 |
Stray Magnetic Field
( above 150 mm from table) |
<1mT
(10 gauss) |
<1mT
(10 gauss) |
<1mT
(10 gauss) |
<1mT
(10 gauss) |
<1mT
(10 gauss) |
| Armature Centering |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
| Utilities Required |
4-6 Bar compressed air, earthing |
| POWER AMPLIFIER |
| Armature Centering |
EPA 63K |
EPA 55K |
EPA 48K |
EPA 42K |
EPA 35K |
| Max. Power Output (KVA) |
63 |
55 |
48 |
42 |
35 |
| Technology |
PWM |
PWM |
PWM |
PWM |
PWM |
| Singal to Noise Ratio |
>70db |
>70db |
>70db |
>70db |
>70db |
| Power Efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
| Input Impedance |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
| Input Sensitivity |
4V rms, compatible with all standard controolers |
| Power Requirement |
3 phase, 415 Volt /50 Hz + Neutral With Ground |
| Protection Interlock |
Over Currrent, Over Voltage , Under Voltage, Module Failure, Cooling Interlock
Over Temperature Amplifier & Shaker, Current Limit, Loss of Input Phase etc. |
| Vibration Controller |
| Standard options |
Swept Sine, Random, Classical Shock, Resonance Search Track and Dwell, Sine on Random |
| Optional Software |
Random On Random, Shock Spectrum Response, Transient Time History, etc. |
| No. Of Channels |
4 Channels Upgradable up to 16 channels |
| Cooling System |
| Model |
EECS012 |
EECS012 |
EECS011 |
EECS010 |
EECS010 |
| Type of Cooling |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
- Wide Dynamic Range
- Force rating from 10Kgf to 7000Kgf
- High performance armature assembly
- Power Efficiency is greater than 90%
- 90 degree Rotation of the shaker for easy integration with slip table
- Power Module designed for easy and quick operation
- Required Safety interlocks mounted for safe operation
- Auto Centering of Armature
- Suitable Connectivity with all worldwide controllers Option for Chamber integration
Electrodynamics Vibration Shaker System are vibration generating equipment, having wide frequency range providing a worthwhile testing environment for Sinusoidal, Shock and Random vibration analysis in Automotive parts and system qualification testing, Avionics and military hardware testing, satellite component testing, Product development & reliability, Telecom, Automobiles Industries, Stress screening, R&D laboratories, Testing Agencies , Defence and Ordinance factories etc as per relevant ISO, IEC,IS,BIS,ASTMB,ISS,JSS55555,BIN,JSS,JIS,MIL-810G,JAS,EN and other National & international Standards.
M/s Environment Equipments offers fully integrated slip table assemblies for attachment with Electrodynamics vibration Shaker. The system is used for three axis sequential testing (x, y, z axis) or used when it is necessary to maintain product positioning with respect to gravity. The system base is comprised of thick mild steel plates with multiple supporting members providing a rigid and sturdy platform for most test items.
A special trunnion gear assembly allows the shaker to be easily rotated between vertical and horizontal orientation.
Specifications are correct at the time of publication. In reference to with our commitment to continuous product improvement, the information herewith is subject to change. ENEQ reserves the rights to amend specifications without prior notice
Note:-
- Shaker can be design as per the Customer testing requirement.
- For higher Random force re-rated amplifier and shaker are also offered.
| System Model |
E400/P40 |
E350/P32 |
E300/P24 |
E250/P15 |
E200/P09 |
| SYSTEM PERFOMANCE PARAMETERS |
| Sine Force (Kgf) |
2500 |
2000 |
1500 |
1000 |
600 |
| Sine Force (KN) |
25.0 |
20.0 |
15.0 |
10.0 |
6.0 |
| Random Force( Kgf) |
2500 |
2000 |
1500 |
1000 |
420 |
| Random Force (KN) |
25.0 |
20.0 |
15.0 |
10.0 |
4.20 |
| Shock Force (Kgf) |
5000 |
4000 |
3000 |
2000 |
1200 |
| Shock Force (KN) |
50 |
40 |
30 |
20 |
12 |
| Max. Acceleration(g) |
100 |
80 |
88 |
76 |
80 |
| Max. Velocity (m/s) |
1.8 |
1.8 |
1.7 |
1.7 |
1.6 |
| Max. DisP (mm,p-p) |
51 |
51 |
38/51 |
38 |
30 |
| Frequency Range(hz) |
DC to 3000 |
DC to 3000 |
DC to 3200 |
DC to 3200 |
DC to 3500 |
| Armature Resonance(±5%) |
2500 Hz |
2500 Hz |
2600 Hz |
2700 Hz |
2900 Hz |
| SHAKER PARAMETER |
| Model |
EEV250 |
EEV200 |
EEV150 |
EEV100 |
EEV60 |
| Mass of Armature |
25 Kg |
25 Kg |
17 Kg |
13 Kg |
13 Kg |
| Armature Diameter (in mm) |
300 mm |
300 mm |
240 mm |
240 mm |
180 mm |
| Payload Capacity (Kg) |
350Kg |
350 kg |
300 kg |
240 kg |
130 kg |
| Insert Pttern |
Center-1
141.4 PCD-4
200 PCD-4
250 PCD-4 |
Center-1
141.4 PCD-4
200 PCD-4
250 PCD-4 |
Center-1
100 PCD-4
141.4 PCD-4
250 PCD-4 |
Center-1
100 PCD-4
141.4 PCD-4
250 PCD-4 |
Center-1
100 PCD-4
141.4 PCD-4 |
| System power Consumption(KVA) |
40 |
32 |
24 |
15 |
9.0 |
Stray Magnetic Field
( above 150 mm from table) |
<1 mT
(10 gauss) |
<1 mT
(10 gauss) |
<1.5 mT
(15 gauss) |
<1.50mT
(15 gauss) |
<2.5 mT
(25 gauss) |
| Armature Centering |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
| Utilities Required |
4-6 Bar compressed air, with earthing |
| POWER AMPLIFIER |
| EPA 28K |
EPA 20K |
EPA 15K |
EPA 10K |
EPA 05K |
| Max. Power Output (KVA) |
28 |
20 |
15 |
10 |
5 |
| Technology |
PWM |
PWM |
PWM |
PWM |
PWM |
| Singal to Noise Ratio |
>70db |
>70db |
>70db |
>70db |
>70db |
| Power Efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
| Input Impedance |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
| Input Sensitivity |
4V rms, compatible with all standard controolers |
| Power Requirement(3 phase, N and Gnd.) |
3 phase, 415 Volt /50 Hz + Neutral With Ground |
| Protection Interlock |
Over Currrent, Over Voltage , Under Voltage, Module Failure, Cooling Interlock
Over Temperature Amplifier & Shaker, Current Limit, Loss of Input Phase etc. |
| Vibration Controller |
| Standard options |
Swept Sine, Random, Classical Shock, Resonance Search Track and Dwell, Sine on Random |
| Optional Software |
Random On Random, Shock Spectrum Response, Transient Time History, etc. |
| No. Of Channels |
4 Channels Upgradable up to 16 channels |
| Cooling System |
| Model |
EECS010 |
EECS010 |
EECS09 |
EECS09 |
EECS06 |
| Type of Cooling |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
- Wide Dynamic Range
- Force rating from 10Kgf to 7000Kgf
- High performance armature assembly
- Power Efficiency is greater than 90%
- 90 degree Rotation of the shaker for easy integration with slip table
- Power Module designed for easy and quick operation
- Required Safety interlocks mounted for safe operation
- Auto Centering of Armature
- Suitable Connectivity with all worldwide controllers Option for Chamber integration
Electrodynamics Vibration Shaker System are vibration generating equipment, having wide frequency range providing a worthwhile testing environment for Sinusoidal, Shock and Random vibration analysis in Automotive parts and system qualification testing, Avionics and military hardware testing, satellite component testing, Product development & reliability, Telecom, Automobiles Industries, Stress screening, R&D laboratories, Testing Agencies , Defence and Ordinance factories etc as per relevant ISO, IEC,IS,BIS,ASTMB,ISS,JSS55555,BIN,JSS,JIS,MIL-810G,JAS,EN and other National & international Standards.
M/s Environment Equipments offers fully integrated slip table assemblies for attachment with Electrodynamics vibration Shaker. The system is used for three axis sequential testing (x, y, z axis) or used when it is necessary to maintain product positioning with respect to gravity. The system base is comprised of thick mild steel plates with multiple supporting members providing a rigid and sturdy platform for most test items.
A special trunnion gear assembly allows the shaker to be easily rotated between vertical and horizontal orientation.
Specifications are correct at the time of publication. In reference to with our commitment to continuous product improvement, the information herewith is subject to change. ENEQ reserves the rights to amend specifications without prior notice
Note:-
- Shaker can be design as per the Customer testing requirement.
- For higher Random force re-rated amplifier and shaker are also offered.
| System Model |
E40/P4 |
E20/P3 |
E10/P2 |
E05/P1 |
E01/P05 |
| SYSTEM PERFOMANCE PARAMETERS |
| Sine Force (Kgf) |
400 |
200 |
125 |
55 |
11 |
| Sine Force (KN) |
4.0 |
2.0 |
1.0 |
0.5 |
0.1 |
| Random Force( Kgf) |
283 |
148 |
70 |
38 |
7.0 |
| Random Force (KN) |
2.83 |
1.4 |
0.7 |
0.4 |
0.07 |
| Shock Force (Kgf) |
800 |
400 |
200 |
110 |
22 |
| Shock Force (KN) |
80 |
70 |
60 |
50 |
40 |
| Max. Acceleration(g) |
57 |
75 |
70 |
78 |
70 |
| Max. Velocity (m/s) |
1.6 |
1.4 |
1.2 |
1.2 |
1.2 |
| Max. DisP (mm,p-p) |
30 |
20 |
18 |
12 |
06 |
| Frequency Range(hz) |
DC to 3500 |
DC to 4000 |
DC to 4500 |
DC to 4500 |
DC to 4500 |
| Armature Resonance(±5%) |
3000 Hz |
3500 Hz |
4000 Hz |
4000 Hz |
4000 Hz |
| SHAKER PARAMETER |
| Model |
EEV040 |
EEV020 |
EEV010 |
EEV005 |
EEV001 |
| Mass of Armature(kg) |
7.0 Kg |
2.6 Kg |
1.8 Kg |
0.7 Kg |
0.4 Kg |
| Armature Diameter (in mm) |
180 mm |
140 mm |
125 mm |
100 mm |
25 mm |
| Payload Capacity (Kg) |
80 Kg |
40 Kg |
20 Kg |
6.0 Kg |
1.5 Kg |
| Insert Pttern |
Center-1
100 PCD-4
141.4 PCD-4 |
Center-1
75 PCD-4
100 PCD-4 |
Center-1
50 PCD-4
100 PCD-4 |
Center-1
35 PCD-4
70 PCD-4 |
Center-1
15 PCD-4
15 PCD-4 |
| System power Consumption(KVA) |
4.5 |
3.0 |
2.0 |
1.0 |
0.5 |
| Stray Magnetic Field |
<2.5 mT
(25 gauss) |
<3 mT
(30 gauss) |
<3 mT
(30 gauss) |
<3 mT
(30 gauss) |
<3 mT
(30 gauss) |
| Armature Centering |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
| Utilities Required |
4-6 Bar compressed air with earthing |
| POWER AMPLIFIER |
| EPA4k4 |
EPA2k2 |
EPA010 |
EPA005 |
EPA001 |
| Technology |
PWM |
PWM |
PWM |
Class-B |
Class-B |
| Singnal to Noise Ratio |
>70db |
>70db |
>70db |
>70db |
>70db |
| Max. Power Output (KVA) |
28 |
20 |
15 |
10 |
5 |
| Technology |
PWM |
PWM |
PWM |
PWM |
PWM |
| Singal to Noise Ratio |
>70db |
>70db |
>70db |
>70db |
>70db |
| Power Efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
| Input Impedance |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
10Kohm |
| Input Sensitivity |
4V rms, compatible with all standard controolers |
Power Requirement
(3 phase, N and Gnd.) |
3 phase, 415 Volt /50 Hz + Neutral With Ground |
1 phase, 220 Volt/50 Hz + Neutral With Ground |
| Protection Interlock |
Over Currrent, Over Voltage , Under Voltage, Module Failure, Cooling Interlock,
Over Temperature Amplifier & Shaker, Current Limit, Loss of Input Phase etc. |
| USB Vibration Controller |
| Standard options |
Swept Sine, Random, Classical Shock, Resonance Search Track and Dwell, Sine on Random |
| Optional Software |
Random On Random, Shock Spectrum Response, Transient Time History, etc. |
| No. Of Channels |
4 Channels Upgradable up to 32 channels |
| Cooling System |
| Model |
EECS06 |
EECS04 |
EECS02 |
EECS02 |
EECS01 |
| Type of Cooling |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
Air Cooled |
