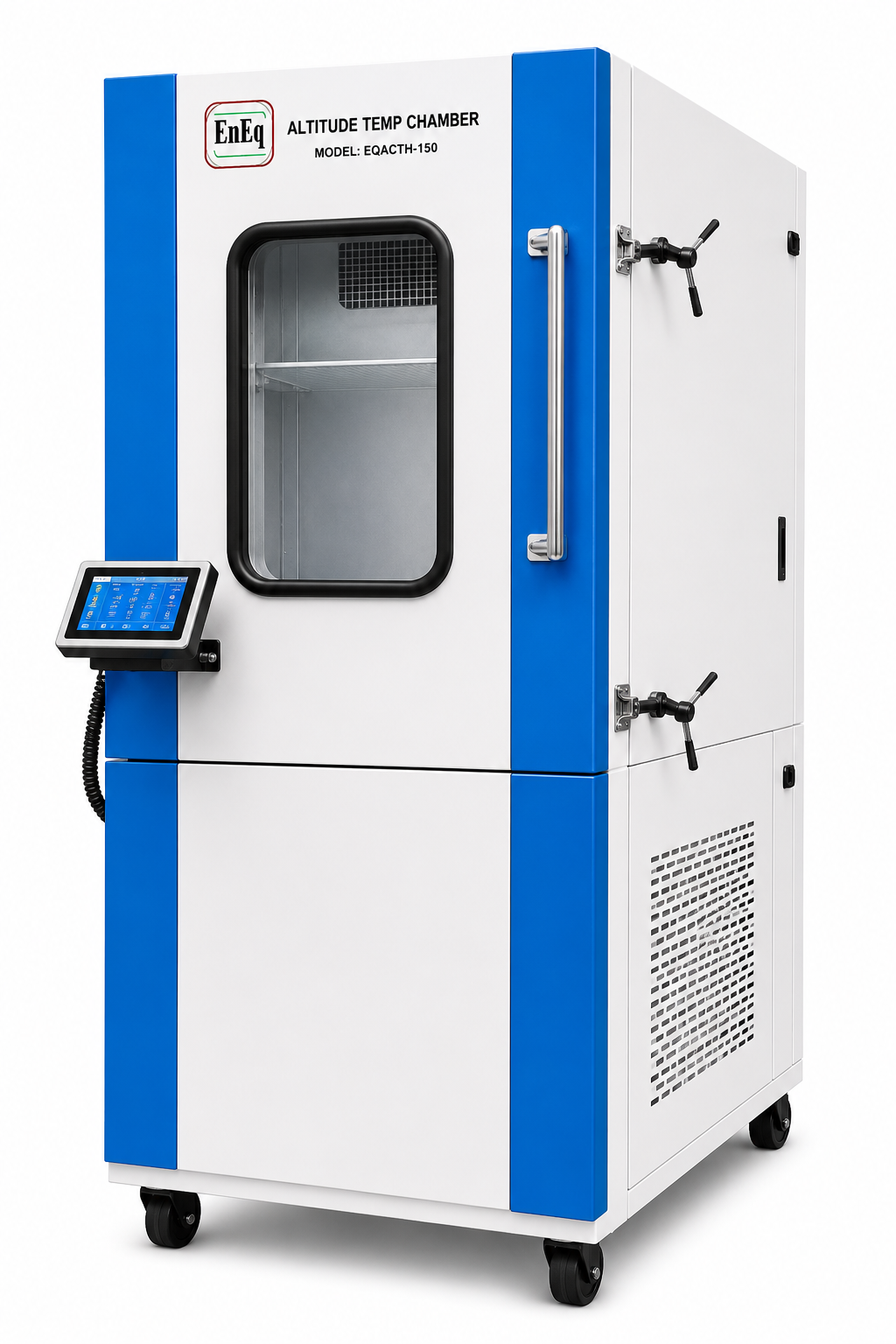

Altitude Temperature Test Chamber

Simulating altitude/vacuum and temperature for combined environmental testing

EnEq Altitude Chambers combine temperature and altitude with Optional humidity to test basic components or sub-assemblies for a variety of industries. Standard altitude chambers simulate Altitude up to 70,000 feet (33.2 Torr) and higher levels optional up to 100,000 feet (8.2 Torr).

Benefits
  • Easy operation
  • Heavy-duty construction for harsh testing
  • Robust Vacuum system for reliability
  • Multi-Loop PLC-based & HMI Touch Screen Controller
  • Ethernet monitoring & control
  • RS-232, RS-485 serial communications
  • 75mm circular port



Model EECATH
Size 27L, 125L, 450L, 1000L, Custom Sizes Available.
Temperature Range Single Stage: -40°C to +10°C Cascade: -60°C to +150°C
Optional Humidity Range 20% to 95% RH with ±3% tolerance
Altitude Range 70,000 FT ( 33.2 Torr) Standard 100,000 FT (8.2 Torr) Optional



EnEq can provide custom-built chambers for simultaneous testing of temperature and low-pressure altitude conditions. These applications are used for the Testing of avionics or other aerospace equipment to simulate actual conditions it might experience found in mountainous regions.
