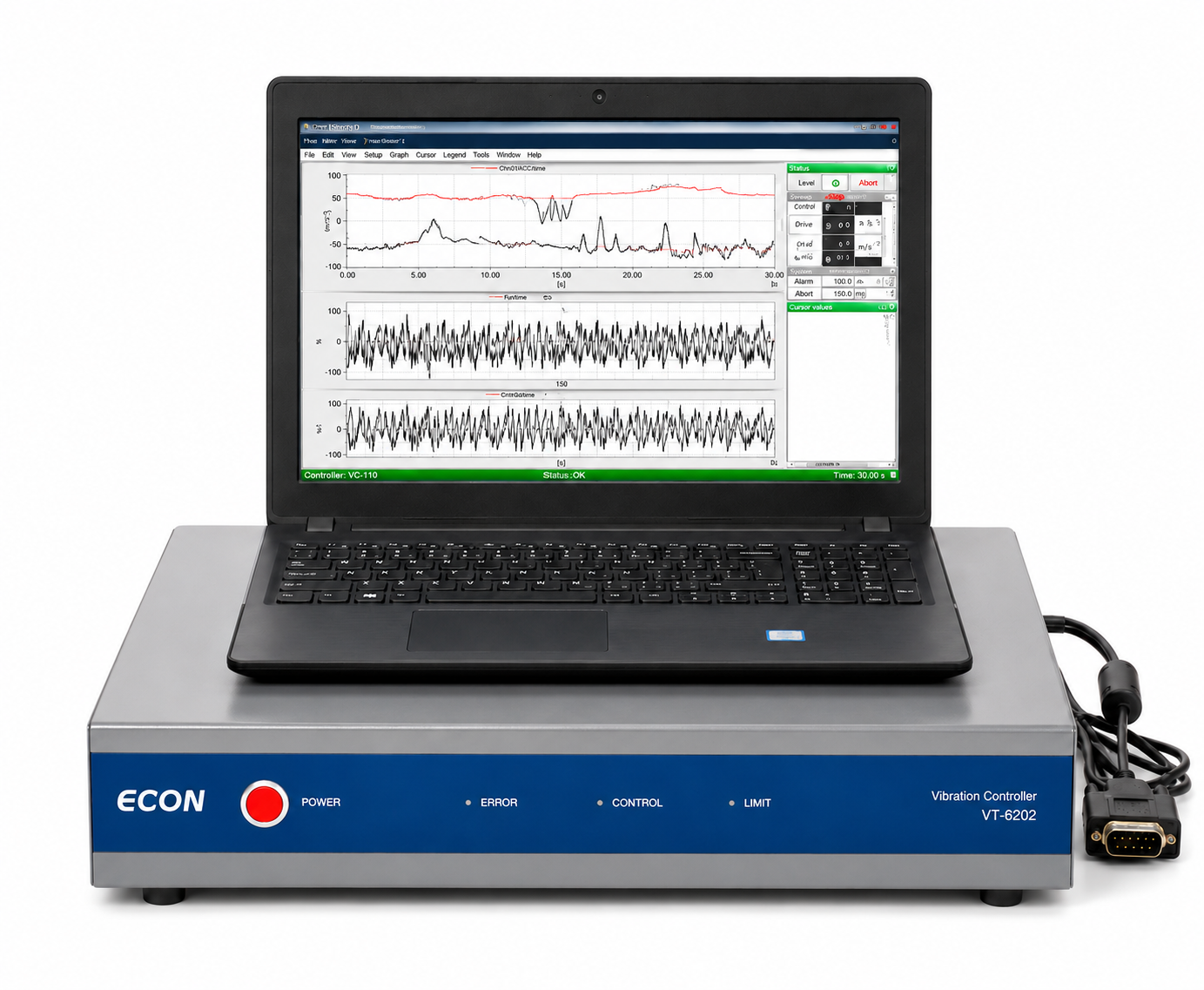

Vibration Controller

​

  The Vibration Controller is suitable to connect with any make Electro-Dynamic Vibration Shaker system and without any change of its hardware or software. It also offers a comprehensive and flexible suite of control software packages running on Windows XP / 7 / 10 system. Users can Customize test applications and systems without expensive hardware upgrades or changes to their computers and operating systems.​

It integrates the up-to-date DSPtechnology, low noise hardware Design, vibration Control algorithms and data transmission protocols. The vibration control system that Features multiple signal conditioning and coupling types of Voltage, ICP, and Charge. Users can enjoy the Connectivity of Environment Equipments make USB Vibration Controller for ease of plug-in, play, and management as well as high speed.



                                          Vibration Controller

Hardware Soecification



Sr. Parameters Model EESC-08
1. Operating System Windows XP, Windows 7/10
2. Filter on analog I/p & O/p channels Anti-aliasing (Analog / Digital)
3. Input channels 08/16
4. Input type Charge/ICP/mV
5. Input connector Microdot (10-32) / BNC
6. Drive Output impedance Compatible to any Amplifier
7. Output channel 1 to 2
8. Drive voltage 12 / 20 Volt (p-p)
9. Digital I/o 8 I/P, 8 O/P
10. DSP processor 16 / 32 Bit
11. No. of processor Dual
12. Processor speed 33/48 MHz
13. ADC 18 / 20 Bit
14. DAC Drive – 18/20 Bit, Cola – 16 Bit
15. Gain selection Automatic / Manual
16. PC interface PCI / USB / LAN Matching the latest industry standards
17. Required Power 90-260VAC, 47 to 63Hz



  • Shine
  • Random
  • Shine On Random
  • Classical Shock
  • Resonance Search/Dwell
  • Narrow Band Random



  • Transport Simulator
  • FFT Analyzer
