Salient Features:-
Product Range of Chamber

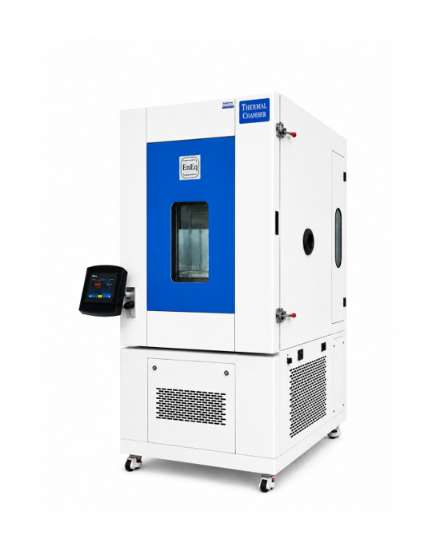

M/s Environment Equipment's make environmental test chambers are used to create the desired environment such as Heat, Cold, Humidity, Thermal Shock, salt spray, Rain spray, dust & sand etc. as per the customer's need.
All chambers are available in different ranges of parameters and capacities as per specific testing requirements of the Customer. The chambers can be integrated with Vibration Shaker systems as well to perform combined environmental Vibration tests. The walk-in chambers are also available for large test objects Such as complete assembly of automobile, Bikes, missiles, electronics test equipment's and etc.
The Chambers comprises a fan, refrigeration unit, humidification, heating equipment, switches, control panel and various safety interlocks to provide a safe environment of operation. Our company is pursuing of attaining excellence in this field through our enthusiastic research and development by incorporating latest technological advancements to comply all types of versatile testing as per national and international standards for a long life of reliable performance.
The dual loop Micro-processor based PID Controller are using for easy operation and latest touch screen panel also available on customer demand. It can be interface with any computer for Remote operation and download / upload test profile or data via using high speed communication RS 232/485, Ethernet and USB ports. The features of data recording, monitoring and report generation can be analysis later on.
Technical Specification
| Test Environment simulation: | As per Customer's requirement ( Heat, Cold ,Humidity , Thermal shock, Salt Spray, Rain test , Dust and sand test etc.) | |
| Construction | Interior and exterior made of Satin finish Stainless Steel grade 304/ powder coated CRC sheet | |
| Working space | Based on Customer requirements | |
| Observation window | Size as per Customer's requirement with six panes of toughened glass, wiper, illumination etc. | |
| Environmental test Chamber | ||
| Temperature Range | From - 70 deg .C to 180 deg. C, ±1 deg. C temperature accuracy at steady state |
|
| Humidity Range | From 20% RH to 97% RH with ±3% tolerance | |
| Rate of change | 0.50C/min to 50C/min, (Average) | |
| Refrigeration system | Air / water cooled system with Non CFC free refrigerant | |
| Thermal Insulation | 125 mm thick Non-flammable rock-wool with / PUF | |
| Viewing Window | Suitable size of six panes toughened glass filled with dry air and strip heaters to Prevent condensed water | |
| Port Hole | 125 mm and 50 mm Port Hole for outlet of operational wire/ cables etc. | |
| Aesthetic | External -Certified Satin finish with CNC operation in Mechanical process Internal as Well designed and processed Single or cascading refrigeration systems properly painted and insulated Well designed and processed Electrical System marked properly identified and routed wiring. | |
| Performance | All critical components of CE marked with suitable rating All branded refrigeration components of European Community All branded electrical components of international level | |
| Salt Spray test Chamber | features | Acrylic glass nozzle in spraying duct for optimum sprays fog distribution. 100-liter capacity brine reservoir Equipped with temperature controller. Compressed air feeder, air saturator and air exhauster. |
| Rain Test Chamber | Equipment's | P X 1, IP X 2 DRIP UNIT IP X 3, IP X 4 Nozzle, Sprinkler IP X 5, IP X6 Jet Nozzle IP X 7, IP X 8 Emersion UNIT IP X 9K high pressure Nozzle Other standards Such as IS9000-JSS55555, JIS0203D, IEC60529(IP), DIN40050, ISO-120653 etc. |
| Features | Glass door with wiper Adjustable Rain drop size, angle distance Automated / mechanical drive of swivel tube Adjustable swivel angle Adjustable water volume flow and measuring control during test |
|
| Instrumentation and Controlling | Microcontroller based with optional touch screen interface. Remote control via RS232/Ethernet RS 485 or LAN Connection. | |
| Port Holes | As per customer’s requirement | |
| Power Required | Three Phase supply with Neutral | |
| Safety protection | Mains Input over & under voltage, Phase drop, Door lock, over and under temperature, Over load | |
| Instrumentation and Controlling | Microcontroller based with optional touch screen interface. Remote control via RS232/Ethernet RS 485 or LAN Connection. | |
