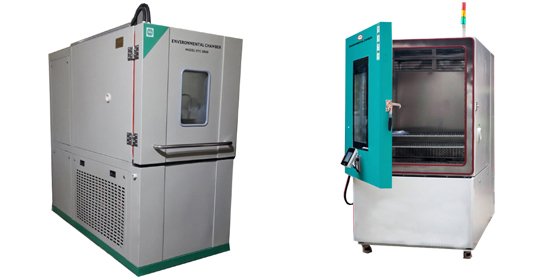

Climatic Chamber

  • Accurate Control of Test Parameters
  • Reliable Performance
  • Corrosion Resistant interior and Exterior
  • CFC Free operation
  • Energy Efficient
  • Aesthetically Designed
  • Easy to use
  • Robust Construction
  • Easy Integration with Vibration Shaker Systems

Environment Equipments Environmental test chambers are used to simulate the desired environment such as Cold, Heat, Humidity, Thermal Shock, Salt Spray, Water spray, dust & sand, etc. as per the customer's requirement. These chambers are available in different ranges of parameters and capacities as per the specific testing requirements of the Customer. Environmental chambers can be integrated with Vibration Shaker systems as well to perform combined environmental Vibration tests. A walk-in chamber is also available for products that require very large capacity & size such as complete automobiles, Bikes, missiles, telecom industry, electronics tests, etc.
The Chambers feature various safety interlocks that are necessary to provide a safe environment of operation. We are incorporating the best engineering practices to develop a Chamber that is capable of performing all types of versatile testing as per international standards for a long life of reliable performance. The design is very good and simple from a maintenance point of view.
The Chamber Controller is very user-friendly and as per the requirement of the customer, it can be upgraded to the latest touch screen panel type as well. The controller is capable of remote operation and monitoring as well. It can easily be integrated with any computer to download/upload test profile or data using high-speed communication RS 232/485, Ethernet, and USB ports. The features of data recording, monitoring, and report generation are also available.



TECHNICAL SPECIFICATION



Test Environment Simulation As per Customer's requirement ( Heat, Cold, Altitude, Humidity, Thermal shock Salt Spray, Rain test, Dust and Sand test, etc.
Working space Based on Customer requirements
Construction Interior and exterior made of Satin finish Stainless Steel grade 304/
powder coated CRC sheet
Observation window Size as per Customer's requirement with six panes of toughened glass,
wiper, illumination, etc.
ENVIRONMENTAL TEST CHAMBER
Temperature Range From -70ºC to 180ºC, ±1ºC temperature accuracy at steady state
Humidity Range From 20% RH to 95% RH with ±3% tolerance
Rate of change 0.5ºC/min to 5ºC/min, (Average)
Refrigeration system Air / water-cooled system with Non-CFC free refrigerant
Thermal Insulation 125 mm thick Non-flammable glass-wool / PUF (Polyurethane foam)
Viewing Window Suitable size of six panes toughened glass filled with dry air and
strip heaters to Prevent condensed water
Port Hole 125mm and 50mm Port Hole for the outlet of operational wire/ cables etc.
External -Certified Satin finish with CNC operation in Mechanical
Aesthetic process Internal Well designed and processed Single or double stage
refrigeration systems properly painted and insulated Well designed
And processed Electrical System marked properly identified and routed wiring.
All critical components of CE marked with suitable rating All branded
Performance refrigeration components of European Community All branded
electrical components of international level
